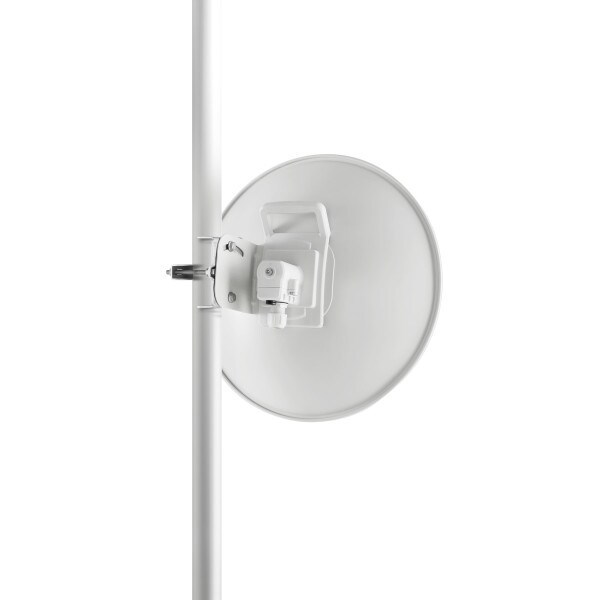

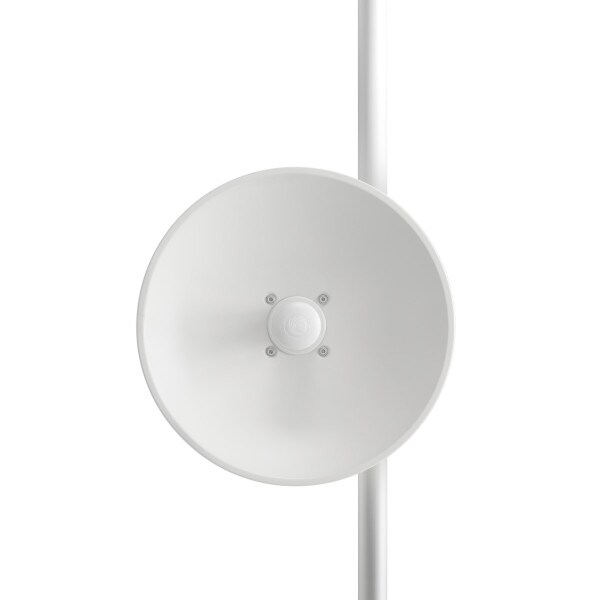

Cambium 3GHz High-Gain Antenna Assembly for PMP450b / PTP450b High-Gain Radios, IP55 (4-Pack)
Cambium Networks N030045D001A
3GHz High-Gain Antenna Assembly for PMP450b / PTP450b High-Gain Radios, IP55 (4-Pack)
Cambium Networks 450 platform increases performance with the addition of the 450b Subscriber and Backhaul Module.
Features:
- Ultra-wide band radios support the entire band, from 3.3 to 3.9 GHz
- Gigabit Ethernet Interface provides the maximum transfer rates to the device
- 3.5 mm audio jack allows direct connection of headphones without any adapters
- CBRS CBSD Category B device 3 GHz 450b Subscriber and Backhaul
- New System on a Chip (SoC) enhances Packet Processing Power more than 4x that of the 450 SM
- Capable of up to 300 Mbps aggregate in a 40 MHz channel
- Backhaul radios can function as a Point-to-Point (PTP) link or as a Subscriber Module (SM)
Specifications N030045D001A
| SPECTRUM | |
| Channel Spacing | Configurable to 500 KHz increments |
| Frequency Range | 3300 - 3900 MHz |
| Channel Width | 5 MHz, 7 MHz, 10 MHz, 15 MHz, 20 MHz, 30 MHz, or 40 MHz |
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium Networks proprietary |
| Physical Layer | 2x2 MIMO OFDM |
| Ethernet Interface | 100/1000BaseT, full duplex, rate auto negotiated, 802.3 compliant |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP, Telnet, SNMP, HTTP, FTP |
| Network Management | IPv4/IPv6 (dual stack), HTTP, HTTPS, Telnet, FTP, SNMPv2c and v3, Cambium Networks cnMaestro™ |
| MTU | 1700 bytes |
| VLAN | 802.1ad (DVLAN Q-inQ), 802.1Q with 802.1p priority, dynamic port VID |
| SECURITY | |
| Encryption | FIPS-197 128-bit AES, 256-bit AES (optional) |
| PERFORMANCE | |
| Ultimate Sensitivity | -94 dBm |
| Maximum Deployment Range | Up to 40 miles (64 km) |
| Latency | 3 - 5 ms, typical |
| GPS Synchronization | Yes, synchronized by Access Point |
| Quality of Service | Diffserve QoS |
| LINK BUDGET | |
| Transmit Power Range | 22 dB dynamic range (to EIRP limit by region) (1 dB step) |
| Maximum Transmit Power | +25 dBm (MIMO, combined V+H) (+23 dBm @ 256QAM) |
| ANTENNA | |
| Integrated Antenna Peak Gain | 20 dBi |
| 3 dB Beamwidth - Azimuth | 7° |
| 3 dB Beamwidth - Elevation | 7° |
| Polarization | Dual slant, +- 45 |
| Front-To-Back Isolation | >25 dB |
| Cross Polarization | 15 dB |
| PHYSICAL | |
| Antenna Accessories | Optional Radome: N000900L021A |
| Surge Suppression | EN 61000-4-5: 10x700us, 4Kv EN 61000-4-2: ESD 30kV contact / 30kV air |
| Mean Time Between Failure | > 40 Years |
| Environmental | IP 55 |
| Temperature / Humidity | -40°C to +60°C (-40°F to +140°F), 0-95% non-condensing |
| Weight | 3.1 kg (7 lb.) (includes mounting bracket) |
| Wind Survival | 200 km/hour (124 mi/hour) |
| Dimensions (HxWxD) (including mount) | 45 cm diameter x 28 cm (17.8” diameter x 11.2”) |
| Power Consumption | 12 W nominal, 15 W peak |
| Input Voltage | 20 - 32 V DC |
| CERTIFICATIONS | |
| Canada (ISED) | 109W-0053 |
| FCC ID | Z8H89FT0053 |
| ETSI | EN |
