5GHz Force 300-19 SM (FCC) (US cord)

SKU: C058900C801A
Manufacturer: Cambium Networks
Data Sheet:
$233.03
(0)No Reviews yet

This item is IN STOCK

Available: 49

Cambium Networks C058900C801A

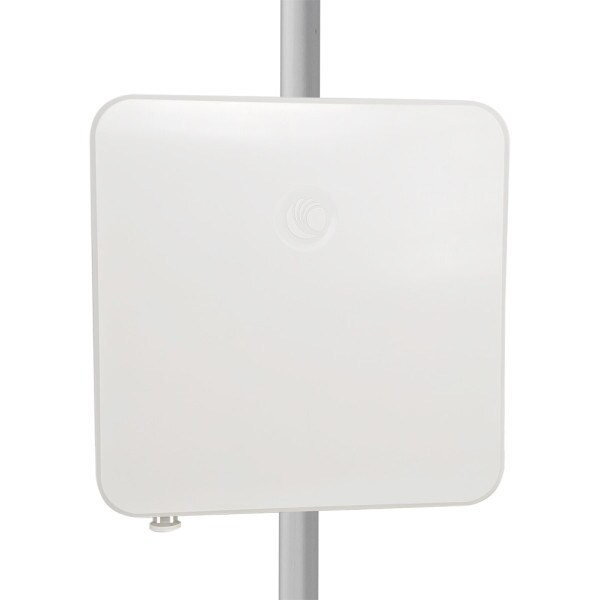

ePMP 5GHz Force 300-19 Subscriber Module (FCC) (US cord)

Force 300 Combines the latest technology of 802.11AC Wave2 and field proven proprietary protocol of ePMP to introduce the first product from the next generate ePMP portfolio. Designed to operate as an affordable yet highly reliable point to point product offering around 600Mb + through-put, the Force 300 will also serve as a high gain subscriber with future ePMP access points. The Force 300 opens up opportunities for short and long backhauls where through-put, interference, and resiliency are important, while keeping cost down.


What we like about the Force 300, C058900C801A

  • Low cost
  • 19db Antenna integrated
  • Supports 4.9Ghz through 5.8ghz
  • 11AC Wave 2 Technology with High Packet per second performance
  • 2x2 MIMO
  • 20/40/80Mhz channels
  • Up to 600Mbps capacity

Specifications C058900C801A

Channel SpacingConfigurable in 5 MHz increments
Frequency RangeWide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width20 / 40 / 80
MAC Media Access Control LayerCambium
Proprietary Physical Layer802.11ac Wave 2 (2x2 MIMO/OFDM)
Ethernet Interfaced10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pin-outs
Protocols UsedIPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network ManagementIPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro
VLAN802.1Q with 802.1p priority
ARQYes
Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -68 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -61 dBm (per chain)
Modulation Levels (Adaptive)MCS0(BPSK) to MCS9 (256 QAM-5/6)
Transmit Power Range0 to +28 dBm (combined up to the regional EIRP limit) (1 dB interval)
Surge Suppression1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection)
EnvironmentalIP55
Temperature-30°C to +60°C (-22°F to +140°F)
Weight1.45 kg (3.2 lbs.) (includes mounting bracket)
Wind Survival180 km/hour (112 mi/hour)
Dimensions27.8 x 27.8 x 4.5 cm (10.9 x 10.9 x 1.8 in) without mounting bracket
Pole Diameter Range1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption12 Watts
Input VoltagePassive POE (30 VDC Nominal); 14-30 VDC range
Encryption128-bit AES (CCMP mode)
FCCIDZ8H89FT0048
Industry Canada Cert109W-0048
CEEN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
