  • 5 GHz Force 300-25 High Gain Radio 4-Pack packaging, priced per radio (FCC) (US cord)

5 GHz Force 300-25 High Gain Radio 4-Pack packaging, priced per radio (FCC) (US cord)

(0) No Reviews yet
$181.68
SKU: C058910M102A
Manufacturer: Cambium Networks

This item is IN STOCK

Available: 1656

Cambium Networks C058910M102A (4-Pack)

Cambium ePMP 5 GHz Force 300-25 High Gain Radio (4-Pack) packaging (FCC) (US cord)


Must be ordered in quantities of four (4)

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11ac Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-25 offers a compelling yet affordable point to point product and a future high gain subscriber module for the ePMP3000 Access Point.

Designed to operate as an affordable, yet highly reliable, point-to-point product offering 700 Mbps throughput, the Force 300-25 will also serve as a high-gain subscriber for future ePMP access points. With its introduction, Force 300-25 opens up opportunities for short- and long-haul backhauls where throughput, interference, and resiliency are important, while keeping costs down. Applications range from enterprise building-to-building connectivity to traditional WISP backhaul needs.

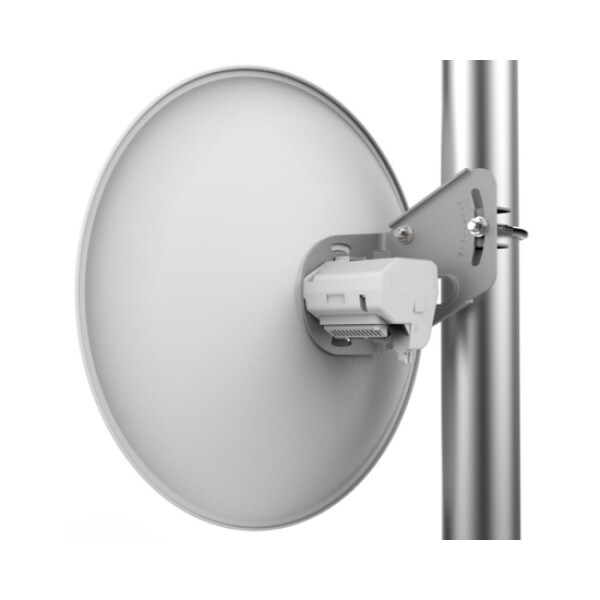

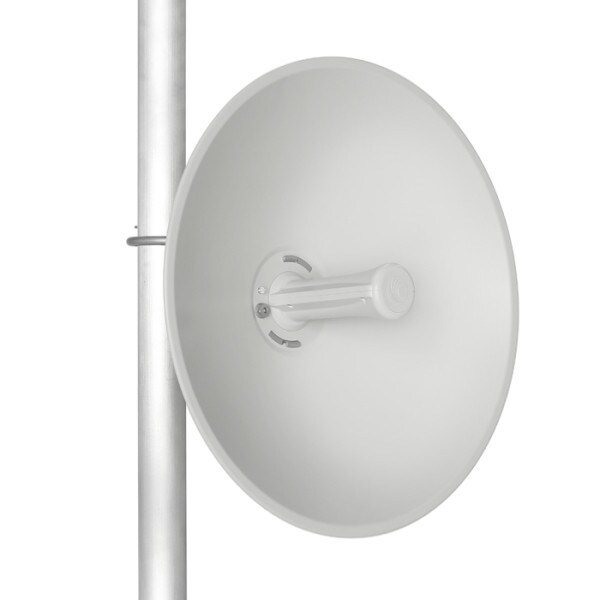

Force 300-25 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-25 also supports an always on spectrum analyzer and local Wi-Fi management to take advantage of mobile installation applications.

Features:

  • Cambium Networks' ePMP Force 300-25 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
  • The ePMP Force 300-25 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
  • The Force 300-25 supports a local Wi-Fi connection to allow easy installation, configuration, and monitoring from any Wi-Fi enabled device.
  • The ePMP Force 300-25 supports constant monitoring of the radio spectrum and allows for live action without bringing down the radio.
  • Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
  • QoS management offers an outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority.

Specifications C058910M102A

SPECTRUM
Channel SpacingConfigurable in 5 MHz increments
Frequency RangeWide Band Operation 5.150 – 5.970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width20 | 40 | 80 MHz
INTERFACE
MAC (Media Access Control) LayerCambium
Proprietary Physical Layer2x2 MIMO/OFDM
Ethernet Interfaced10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols UsedIPv6/IPv4 Management, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network ManagementHTTPs, SNMPv2c, SSH
VLAN 802.1Q with802.1p priority
PERFORMANCE
ARQYes
Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS0 = -87 dBm to MCS8 (256 QAM-3/4) = -63 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS0 = -85 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS0 = -82 dBm to MCS9 (256QAM-5/6) = -56 dBm (per chain)
Modulation Levels (Adaptive)MCS0 (BPSK) to MCS9 (256QAM 5/6)
Transmit Power Range0 to +27 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Surge Suppression1 Joule Integrated
EnvironmentalIP55
Temperature-22°F to +140°F (-30°C to +60°C)
Weight2.4 kg (5.3 lbs)
Wind Survival180 km/hour (112 mi/hour)
Dimensions (Dia x Depth)47 cm x 31 cm (18.5 in x 12.2 in)
Pole Diameter Range6.4 cm – 7.6 cm (2.5 in – 3 in)
Power Consumption12 Watts
Input Voltage30 Volts
SECURITY
Encryption128-bit AES (CCMP mode)
CERTIFICATIONS
FCCIDTBD
Industry Canada CertTBD
CETBD
