4x4 MU-MIMO Sector Antenna (for ePMP3000AP)

(0) No Reviews yet
$458.85
SKU: C050910D301A
Manufacturer: Cambium Networks

This item is IN STOCK

Available: 162

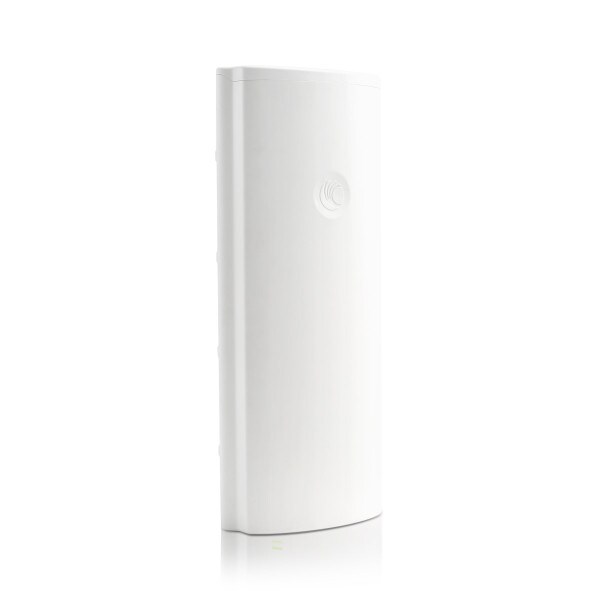

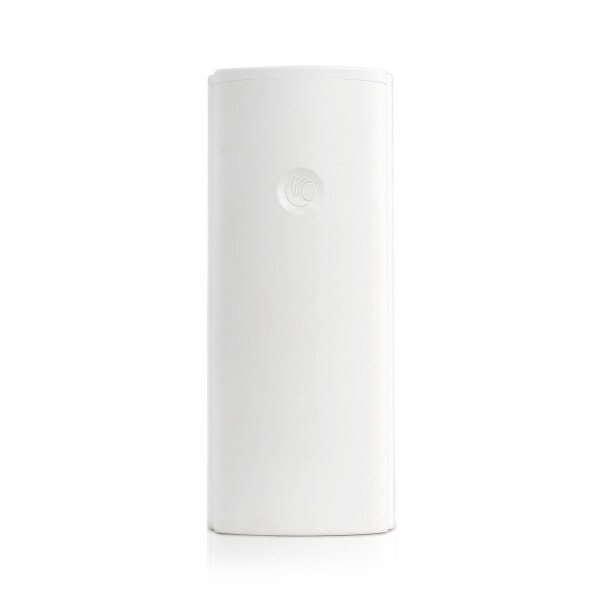

ePMP 5GHz 17dBi 4x4 MU-MIMO 90 degree Sector Antenna with Mounting Kit for ePMP 3000 AP

Cambium Networks has deployed more than five million radios around the world achieving unparalleled degrees of scalability. Continuing the tradition of designing and manufacturing industry leading antenna solutions, the ePMP 3000 4X4 sector antenna encompasses all the key differentiations of the Cambium Antenna line and adds 4X4 Multi User MIMO Capability. Designed to work in 5 GHz spectrum and 90 degree coverage, the antenna is an integral part of the ePMP 3000 Access Point and allows for Multi User MIMO Operation.


Features:

  • Frequency Re-use: Designed for ABAB channel re-use (two channels covering four sectors), the sector antenna has a minimum 30 dB front to back ratio over a wide rear facing aperture.
  • Channel Flexibility: Consistent gain from 4.9 to 6.0 GHz allows the operator to select a channel anywhere in the band and achieve the expected performance.
  • Consistent Coverage: Excellent null fi ll capabilities of the antenna allow for broad geographical coverage within a sector even near the base of the tower and the edges of the sector.
  • Designed for the Installer: Small, compact design, integrated ePMP radio mount and GPS antenna integration.
  • Predictable Performance: The sector antenna is integrated into Cambium Networks LINKPlanner. The 3D model shows coverage at all elevations and across the azimuth.

Specifications C050910D301A

Frequency Range4.9 GHz to 5.97 GHz
Gain17 dBi
3 dB Beamwidth - Azimuth70 degrees
3 dB Beamwidth - Elevation6 degrees
Electrical Downtilt-2 degrees
Polarization2X Horizontal, 2X Vertical
Port-to-Port Isolation> 20 dB
Front-to-Back Ratio30 dB
Maximum Input Power5 W
Input Impedance50 ohms
Mounting Connectors4 x RP SMA
Mounting HardwareIncluded for mounting to mast diameters 2” to 4” (5 cm to 10 cm) -10 to +5 degree tilt Hardware included to connect ePMP access point to back of antenna body
Physical DimensionsAntenna Body: 23.4” (H) x 9.6” (W) x 3.25” (D) (594 mm x 157 mm x 110 mm)
WeightAntenna Body: 8.0 lbs, 3.7 kg w/ ePMP 3000 Access Point and Mounting Brackets: 13.8 lbs. 6.3 kg
EnvironmentalIP65
Radome MaterialUV Protected ABS
Operating Temp-400C to 600C (-400F to 1400F)
