3000 5 GHz Access Point Radio (FCC) (US cord)

(0) No Reviews yet
$918.85
SKU: C058910A102A
Manufacturer: Cambium Networks

This item is IN STOCK

Available: 191

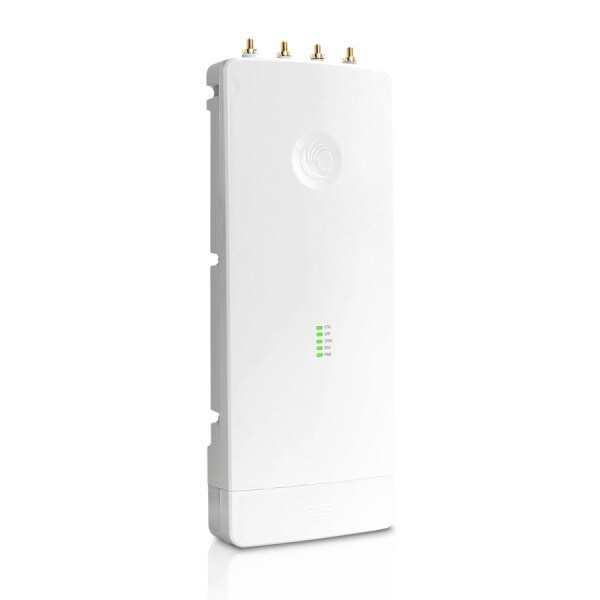

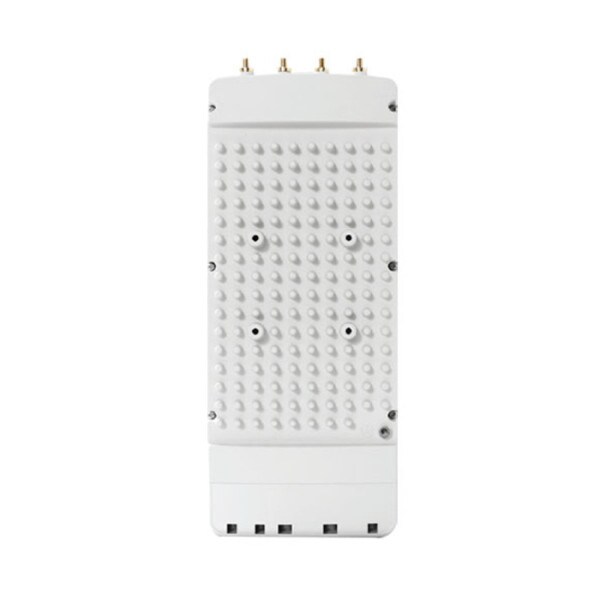

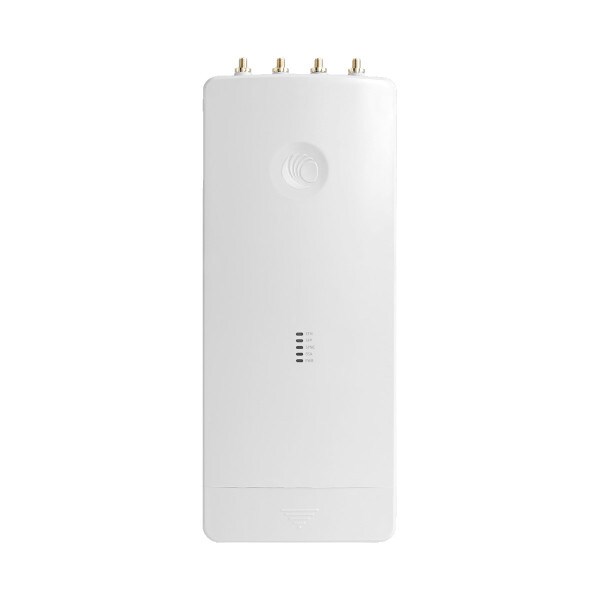

ePMP 3000 5GHz Connectorized MU-MIMO 4x4 Access Point with GPS Sync, FCC. US power cord

Cambium Networks' ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000 is the third generation access point (AP) that carries on the interference tolerance mechanisms from ePMP 2000 but adds the power of Multi-User MIMO (MU-MIMO). The ePMP 3000 is a 4X4 MU-MIMO access point that can double the throughput at the sector level with the same channel bandwidth by serving two subscribers at the same time. In addition, the ePMP 3000 continues interference mitigation techniques with support of the beam steering antenna for uplink, dynamic filtering for neighboring channel interference, and the robust software from the ePMP product line. The ePMP 3000 AP system consists of the ePMP 3000 AP, a 4X4 sector antenna, optional beam steering antenna and a 25 dBi and 16 dBi subscriber modules.

The ePMP 3000 system boasts high packet per second performance, peak throughput of 1.2 Gbps and supporting subscriber modules with 600 Mbps of peak throughput.


Key Advantages:

  • Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
  • Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler up to 120 simultaneously active subscriber modules can be served without performance degradation.
  • Industry-Leading Interference Tolerance: The intelligent filtering capability on the receive side makes the ePMP 2000 immune to the effects of strong off-channel interferers and on the transmit side serves to reduce off-channel noise for better radio co-location.
  • Industry-Leading Spectral Efficiency: MU-MIMO in the downlink doubles the sector capacity by serving two MIMO users at the same time.

Key Specifications:

  • MU-MIMO support with peak throughput of 1.2 Gbps
  • 256QAM-5/6, 80 MHz support
  • Supports a wide frequency range: 4910-5970 MHz
  • 802.3at compliant 100/1000BaseT interface
  • Frequency re-use with GPS sync, interference mitigation with beam steering antenna and dynamic filtering

Specifications C058910A102A

Channel SpacingConfigurable on 5 MHz increments
Frequency Range4910 – 5980 MHz (exact frequencies as allowed by local regulations)
Channel Width20 | 40 | 80 MHz
INTERFACE
MAC (Media Access Control) LayerCambium Proprietary
Physical Layer4X4 MUMIMO/OFDM
Ethernet Interfaced100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port
Powering Methods Supported56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter
Protocols UsedIPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network ManagementHTTPs, SNMPv2c, SSH
VLAN802.1Q with 802.1p priority
PERFORMANCE
Subscribers per SectorUp to 120
ARQYes
Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS 0 , -92 MCS 8 supported by Wi-Fi -68
Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS0, -89 MCS9, -64
Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS0, -86, MCS9 - 61
Modulation Levels (Adaptive)MCS0 (BPSK) to MCS 9 (256 QAM 5/6)
GPS SynchronizationYes, via Internal GPS or Cambium Sync (Internal GPS receiver also contains a patch antenna and can be used without the external puck antenna)
Quality of ServiceThree level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support*
DSO*Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel
Fast DFS*Change to alternate radar free channel with background availability check
LINK BUDGET
AntennaSector Antenna (C050910D301A ) Available
Transmit Power Range0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval)
PHYSICAL
Sector Antenna Connection4 x 50 ohm, RP (Reverse Polarity) SMA
Beamforming Antenna Connection2 x 50 ohm, RP (Reverse Polarity) SMA, DC Coupled (powering antenna)
GPS Antenna Connection1 x 50 ohm, RP (Reverse Polarity) SMA
Surge Suppression1 Joule Integrated. C000000L033A - 56V Gigabit surge suppressor recommended for optimal surge protection
EnvironmentalIP55
Temperature-30°C to +55°C (-22°F to +131°F)
Power Consumption25 W Maximum 1
Input Voltage44 V to 59 V
Weight0.7 kg (1.5 lbs) without brackets
Dimensions (L x W x H)22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets
SECURITY
Encryption128 bit AES (CCMP mode)
CERTIFICATIONS
FCCIDZ8H-89FT0024**
INDUSTRY CANADA109W-0024**
CEEN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
