3000L 5 GHz Access Point Radio (FCC) (US cord)
Cambium Networks C058910A122A

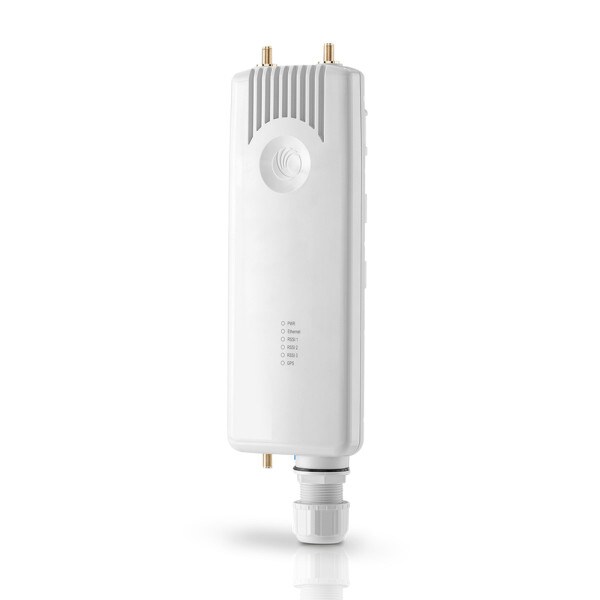

ePMP 3000L 5 GHz Access Point
Cambium Networks ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments all at a compelling price. The ePMP 3000L is the third generation access point (AP) that carries on the interference tolerance mechanisms with an emphasis on high-performance in low-density point to multipoint sectors.
MicroPOP Applications: ePMP 3000L is ideally suited for areas with low density or small numbers of subscribers. With support for narrow-band sectors and omnis, coverage can be added exactly where needed.
Frequency Reuse: Supports GPS synchronization and SM Transmit power control to allow for frequency re-use.
Unmatched Performance and Scalability: With the efficient Cambium Networks MAC protocol and advanced air-fairness scheduler the ePMP 3000L supports high performance and low consistent latency to subscribers.
Features:
- 2X2 MIMO support with peak throughput of 600 Mbps
- 256QAM-5/6, 80 MHz support
- Supports a wide frequency range: 4910 to 5950 MHz
- Frequency re-use with GPS sync and interference mitigation

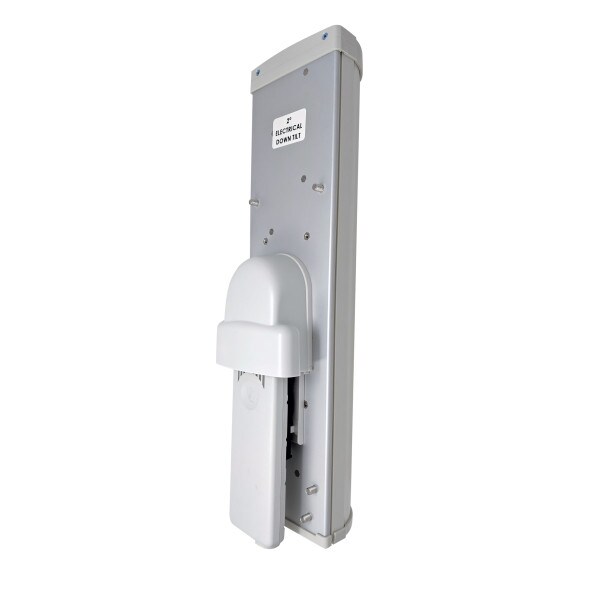

- Connectorized for use with sector antenna. Also compatible with RF
- Elements Twistport(tm) Adaptor for ePMP
- Cloud or on-premises network management with cnMaestro
Specifications C058910A122A
| SPECTRUM | |
| Channel Spacing | Configurable on 5 MHz increments |
| Frequency Range | 4910 - 5970 MHz (exact frequencies as allowed by local regulations) |
| Channel Width | 20 | 40 | 80 MHz |
| INTERFACE | |
| MAC (Media Access Control) Layer | Cambium Proprietary |
| Physical Layer | 2X2 MIMO/OFDM |
| Ethernet Interfaced | 100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port |
| PERFORMANCE | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS0 = -87 dBm to MCS9 (256QAM-5/6) = -64 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0 = -84 dBm to MCS9 (256QAM-5/6) = -59 dBm (per chain) |
| PHYSICAL | |
| Sector Antenna Connection | 2 x 50 ohm, RP (Reverse Polarity) SMA Also compatible with RF Elements Twistport™ Adaptor for ePMP |
| GPS Antenna Connection | 1 x 50 ohm, RP (Reverse Polarity) SMA; Optional external GPS Puck Antenna avaialble model N000900L030A |
| Surge Suppression | 1 Joule Integrated. C000000L065A - 30V Gigabit surge suppressor recommended for optimal surge protection |
| Environmental | IP67 |
| Temperature | -22°F to +140°F (-30°C to +60°C) |
| Power Consumption | 12 Watts |
| Input Voltage | 30 Volts Nominal (14V to 30V Range) |
| Weight | 0.7 kg (1.5 lbs) without brackets |
| Dimensions (L x W x H) | 22.2 x 12.4 x 4.5 cm (8.75 x 4.9 x 1.75 in) without brackets |
