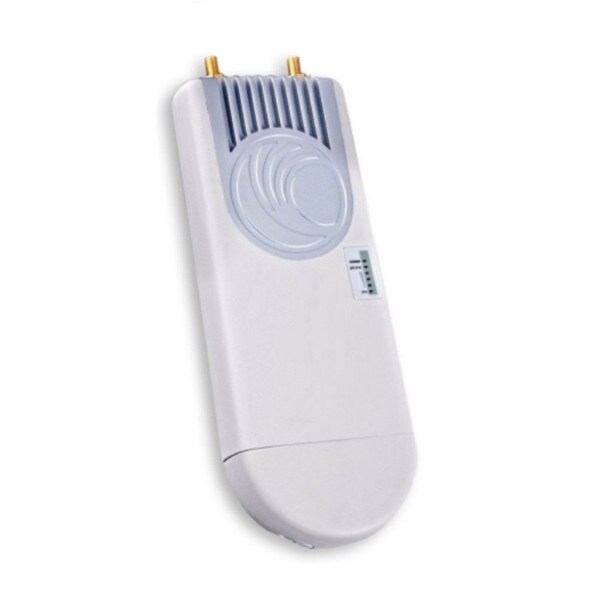

ePMP 1000: 5 GHz Connectorized Radio with Sync (FCC)
Cambium ePMP 1000 Gps Sync 5Ghz Connectorized Radio with Sync (FCC)
Cambium Networks’ ePMP 1000 Connectorized Radio provides more than 150 Mbps of real user throughput. Using 2x2 MIMO-OFDM technologies, ePMP deployments achieve industry leading data rates.
The ePMP 1000 Connectorized Radio has the flexibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni and high-gain panel or dish antennas. This versatility allows service providers to configure their network using high gain antennas to satisfy the most challenging environments.
The ePMP 1000 Connectorized Radio can be configured as a Subscriber Module, an unsynchronized Access Point or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronized Radio in either a PMP or PTP deployment forming a GPS Synchronized solution.
Specifications C058900A112A
| SALES MODEL NUMBER | 5 GHz: C058900P112A/C058900A112A (US/FCC ), C050900P013A/C050900A013A (EU), C050900P011A/C050900A011A (Other) 2.4 GHz: C024900P011A/C024900A011A |
| CHANNEL SPACING | Configurable on 5 MHz increments |
| FREQUENCY RANGE | 5 GHz: 5150 – 5970 MHz (exact frequencies as allowed by local regulations) 2.4 GHz: 2402 – 2472 MHz |
| CHANNEL WIDTH | 5 | 10 | 20 | 40 MHz |
| MAC (MEDIA ACCESS CONTROL) LAYER | Cambium Proprietary |
| PHYSICAL LAYER | 2x2 MIMO/OFDM |
| ETHERNET INTERFACE | 100/1000BaseT, rate auto negotiated (802.3af compliant) |
| POWERING METHODS SUPPORTED | 30V PoE Supply (included), CMM3 & CMM4, 802.3af PoE Supply |
| PROTOCOLS USED | IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, FTP |
| NETWORK MANAGEMENT | HTTPs, FTP, SNMPv2c |
| VLAN | 802.1Q with 802.1p priority |
| SUBSCRIBERS PER SECTOR | Up to 120 |
| ARQ | Yes |
| NOMINAL RECEIVE SENSITIVITY (W/ FEC) @ 20MHZ CHANNEL | MCS0 = -93 dBm to MCS15 = -69 dBm (per branch) |
| NOMINAL RECEIVE SENSITIVITY (W/ FEC) @ 40MHZ CHANNEL | MCS0 = -90 dBm to MCS15 = -66 dBm (per branch) |
| MODULATION LEVELS (ADAPTIVE) | MCS0 (BPSK) to MCS15 (64QAM 5/6) |
| LATENCY (nominal, roundtrip) | 6 ms (Flexible Frame Mode), 17 ms (GPS Sync Mode) |
| GPS SYNCHRONIZATION | Yes, via Internal GPS, CMM3, or CMM4 |
| QUALITY OF SERVICE | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Addr, Broadcast, Multicast and Station Priority |
| ANTENNA | Sector Antenna with 90° 3dB beam width available |
| TRANSMIT POWER RANGE | -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| ANTENNA CONNECTION | 50 ohm, RP (Reverse Polarity) SMA (2) |
| SURGE SUPPRESSION | 1 Joule Integrated |
| ENVIRONMENTAL | IP55 |
| TEMPERATURE | -30°C to +60°C (-22°F to +140°F) |
| WEIGHT | 0.49 kg (1.1 lb.) |
| WIND SURVIVAL | 145 km/hour (90 mi/hour) when mounted on ePMP Sector Antennas |
| DIMENSIONS (H x W x D) | 29.1 x 14.5 x 8.3 cm (11.4 x 5.7 x 3.3 in) |
| POWER CONSUMPTION (over 100m CAT5 cable) | 7 W Maximum, 5 W Typical |
| INPUT VOLTAGE | 10 to 30 V |
| ENCRYPTION | 128-bit AES (CCMP mode) |
| FCCID | 2.4 GHz: Z8H89FT0011 / 5 GHz : Z8H89FT0006 |
| INDUSTRY CANADA CERT | 2.4 GHz: 109W-0011 / 5 GHz : 109W-0006 |
| CE | 5 GHz: EN 302 502 v1.2.1 5 GHz: EN 301 893 v1.7.1 |
