ePMP 1000: 2.4 GHz Connectorized Radio with Sync (US cord)

SKU: C024900A011A
Manufacturer: Cambium Networks
Data Sheet:
$598.02
(0)No Reviews yet

Call for availability

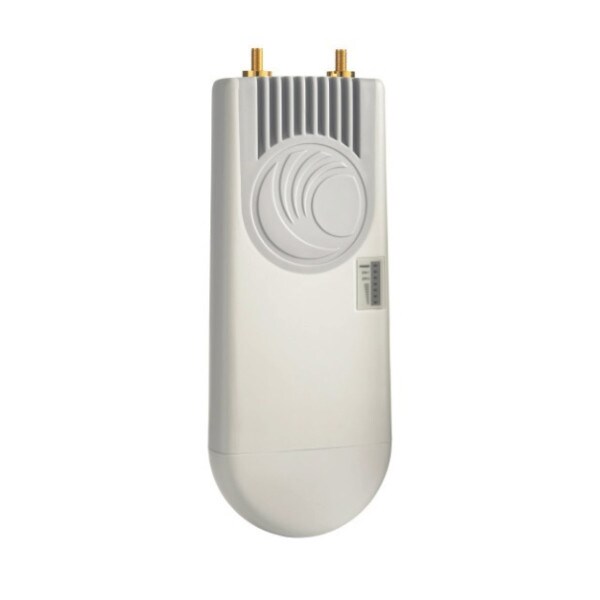

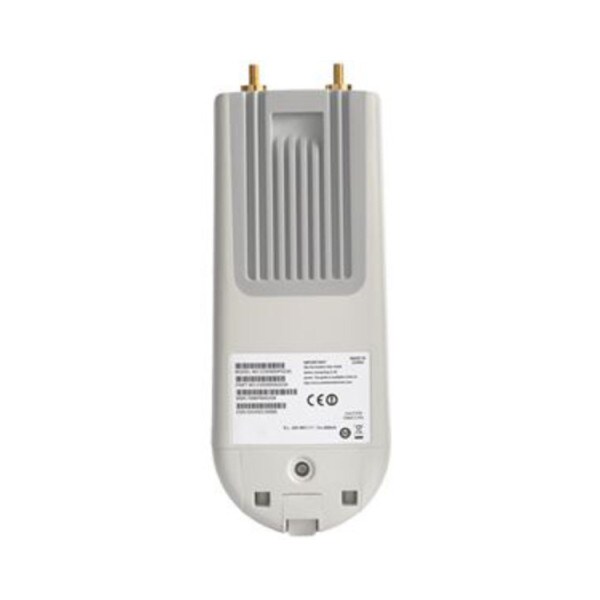

Cambium ePMP 1000, 2.4GHz Connectorized Radio with GPS Sync

2.4Ghz Connectorized Radio With Gps Sync

Network operators are challenged to deliver reliable connectivity in overcrowded RF environments. As available spectrum becomes more congested, having the right broadband access solution that allows network operators to deliver efficient quality cost effectively, is vital for all types of deployments.

Maximize Network Performance

Maximize network performance using ePMP software with eFortify™ and eCommand™ features and tools. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning and monitoring of their network. The ePMP 1000 GPS Sync Ready Radio provides flexibility to grow from a single sector deployment to complex multi-sector / multi-site deployments, as the subscriber base expands.

5 GHz and 2.4 GHz

Available in both 5 GHz and 2.4 GHz frequency bands the platform delivers high performance and reliable broadband connectivity to customers, with services such as VoIP, video and data. The ePMP 1000 is the most effective connectivity solution for reaching the under-and unconnected around the world.

Specifications C024900A011A

Antenna connection50 ohm, RP (Reverse Polarity) SMA
Surge suppression1 Joule Integrated
EnvironmentalIP55
Temperature-30°C to +60°C (-22°F to +140°F)
Weight5.1 kg (10 lbs) with antenna, 0.52 kg (1.1 lbs) without antenna
Wind survival200 km/hour (120 mi/hour) with antenna
Dimensions (H x W x D)Radio: 26.9 x 11 x 7.7 cm (10.6 x 4.3 x 3.0 in) Antenna (incl brackets): 80cm x 22.5cm x 24cm (31.5 x 8.9 x 9.4 in)
Power consumption (over 100m CAT5 cable)10 W Maximum, 7.5 W Typical
Input voltage23 to 56 V
Encryption128-bit AES (CCMP mode)
FCCID2.4 GHz: Z8H89FT0012 / 5 GHz: Z8H89FT0012
