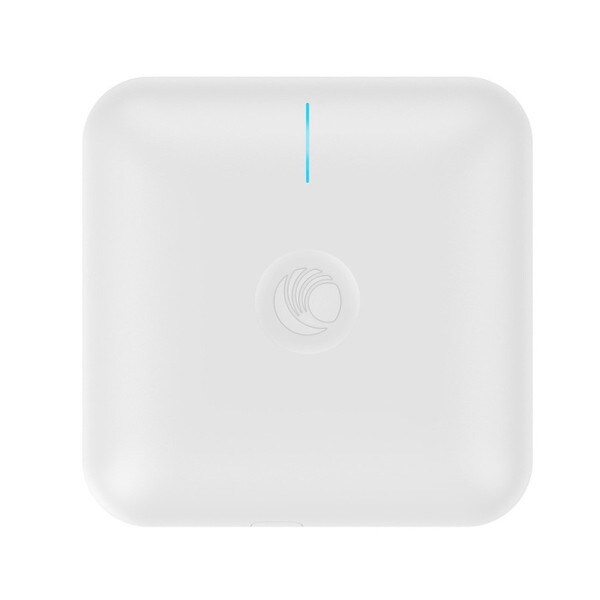

cnPilot E410 Indoor (FCC, US cord) 802.11ac Wave 2, 2x2, AP
cnPilot E410 Indoor (FCC, US cord) 802.11ac Wave 2, 2x2, AP with PoE Injector
Future proof your indoor deployments with the compact, low profile, 802.11ac Wave 2 Multi-user MIMO (MU-MIMO) beamforming, high-speed E410 Enterprise Access Point. The E410 is perfect for schools, malls, hotels, resorts, coffee shops, multi-dwelling units (MDUs), or any indoor environment that needs reliable, high performance access points.
Specifications PL-E410PUSA-US
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| MiMO Streams | 2x2 MiMO |
| Range | 180m (650ft) |
| Concurrent Clients | 256 |
| Max Data Rates | 867Mbps |
| SSID | 16 SSIDs across 2 radios |
| Antenna Gain | 4.55dBi (2.4GHz) / 4.25dBi (5GHz) |
| Multi-Hop Mesh | Yes, supported on Indoor and Outdoor access points. Mesh auto-recovery supported |
| Polarization | Dual-linear |
| Antenna Coverage | Omni (360°) |
| Ethernet Ports | (1) 1 Gigabit Ethernet |
| Frequency Bands | 2.4GHz:2400 - 2484MHz 5GHz: 5150 - 5850MHz with DFS band support |
| Power Supply | Standard 802.3af injector (supplied) any PoE switch |
| Power Consumed | 13W (max) |
| Dimensions | 170 x 170 x 41mm |
| Weight | 384g |
| Temperature | 0 to 50°C |
| LED | Single LED window with tri-color (Amber, Blue, Green) display |
| Max Tx Power | +25dBm |
| Physical Lock | Kensington key hole |
