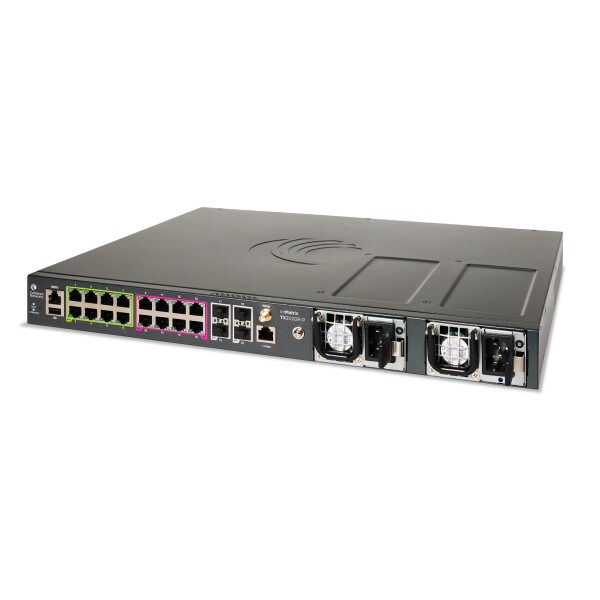

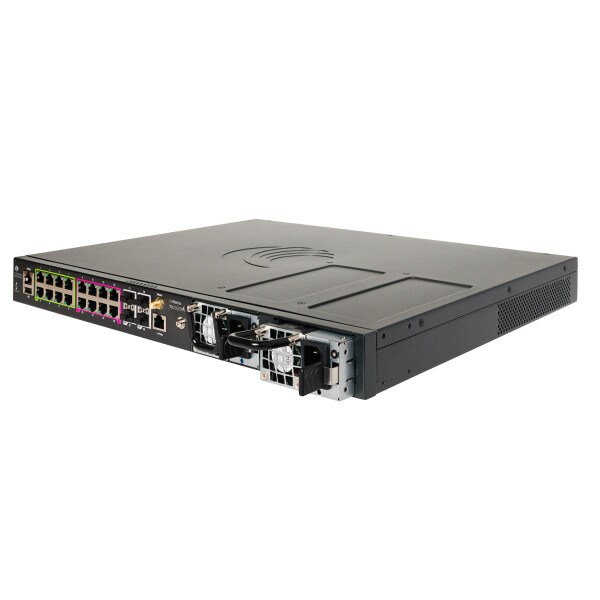

cnMatrix TX2020R-P, Intelligent Ethernet PoE Switch, Cambium Sync, 16 x 1 Gbps and 4 SFP+ 10 Gbps port. Removeable & Redundant Power Supplies (not included) - no power cord, USA Only

SKU: MXTX2020GxPA11
Manufacturer: Cambium Networks
Data Sheet:
$2,889.77
(0)No Reviews yet

Call for availability

Details

cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE and Cambium synchronization in a single box solution that is easy to install and manage while improving network performance.

Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs.

cnMatrix TX2000 Series Switches At-a-Glance:

• Cloud Managed
• Non-Blocking, Fully Managed, Enterprise Grade, L2/L3 Switch
• Cambium Sync – Redundant GPS Input Sources
• Comprehensive/Intelligent PoE Solution
• Dual Redundant AC/DC Removable Power Supplies

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.

The cnMatrix platform of switches provides:
• Full Line Rate, non-blocking architecture
• Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS*
• Zero-touch deployment of switches makes installation easy
• Policy Based Automation eliminates manual and time-consuming configuration
• Enhanced Security with automated device profiling and segmentation
• Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
• Unified Wired-Wireless access solution

The cnMatrix TX Series of Switches provides the following addition functionality:

Cambium Sync
• Redundant Input Sync sources
  » Internal GPS module (with external antenna)
  » cnPulse
• Full per-port control with stats available

Comprehensive/Intelligent PoE solution
• 802.3af/at/bt - up to 90W
• 24V Passive PoE - up to 15W
• 54V Passive PoE - up to 90W

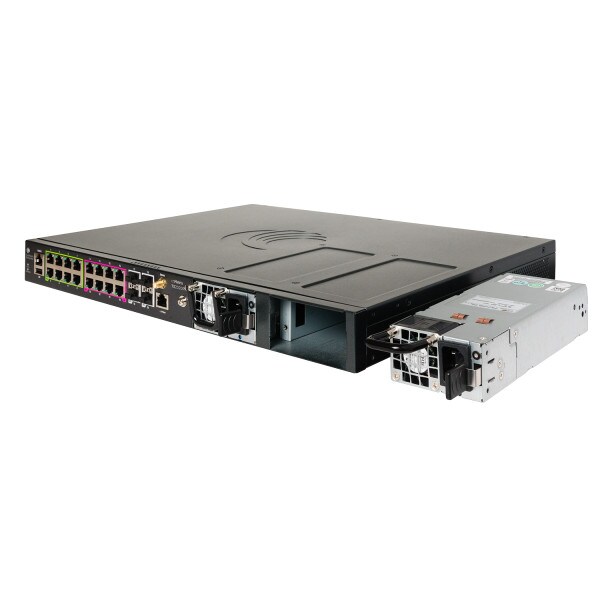

Dual redundant removable power supplies AC supplies
• 600W, 930W, & 1200W options

DC supplies
• Fully Isolated – Supports positive/negative input voltages
• 36V–72V
• 600W, 930W, & 1200W options
• Grounding lug nut located on front panel

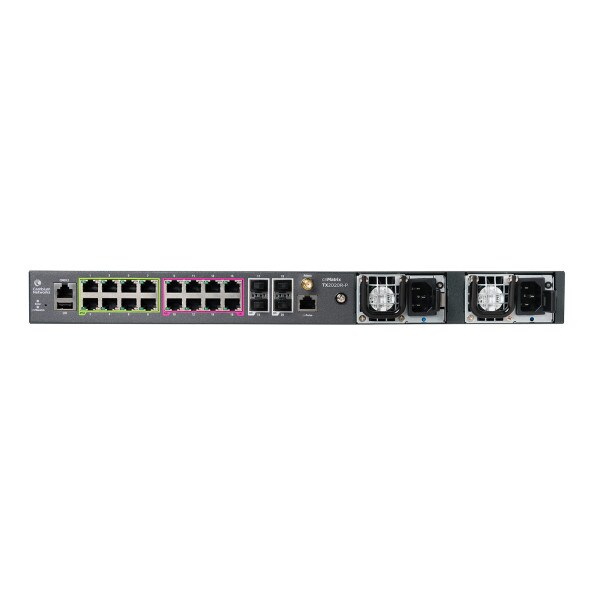

All interfaces located on front panel

The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The cnMatrix series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 3/5-Year Limited Lifetime Warranty.

* Feature to be included in a future release.
