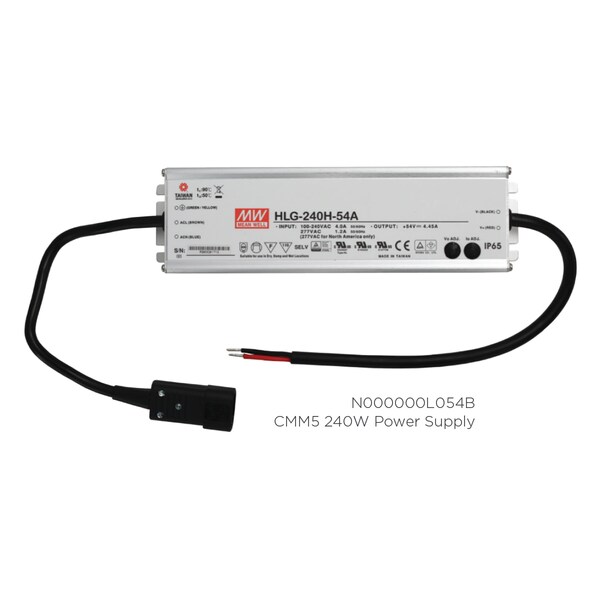

Power Supply AC 54V 240W
Cambium Networks N000000L054
POWER SUPPLY FOR CMM4, 54V, HLG-240H-54C
Can power up to four PMP 450i AP’s or 2 PMP 450m AP’s PLUS controller
NOTE: When powering PMP 450i AP devices, a crossover cable must be used, or Cambium dongle N000045L001A may also be used (PMP 450i devices require pins 8,7 +Vcc and pins 4, 5 DC return).
Specifications N000000L054
| Output | |
| DC Voltage | 54V |
| Constant Current Region1 | 27 ~ 54V |
| Rated Current | 4.45A |
| Rated Power | 240W 240.3W |
| Input | |
| Voltage Range2 | 90 ~ 305VAC 127 ~ 431VDC |
| Frequency Range | 47 ~ 63Hz |
| Efficiency | 93.5% |
| AC Current | 4A / 115VAC 2A / 230VAC 1.2A / 277VAC |
| Protection | |
| Over Current3 | 95 ~ 108% Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over Voltage | 60 ~ 67V Protection type: Shut down and latch off o/p voltage, re-power on to recover |
| Over Temperature | Shut down o/p voltage, recovers automatically after temperature goes down |
| Working Temp. | -40 ~ +70°C |
| Working Humidity | 20 ~ 95% RH non-condensing |
| Other MTBF | 207.9K hours min. MIL-HDBK-217F (25°C) |
| Dimension | 251 x 68 x 38.8 mm (L x W x H) |
