ePMP Force 200 Radome

(0) No Reviews yet
$21.85
SKU: N000900L021A
Manufacturer: Cambium Networks

This item is IN STOCK

Available: 102

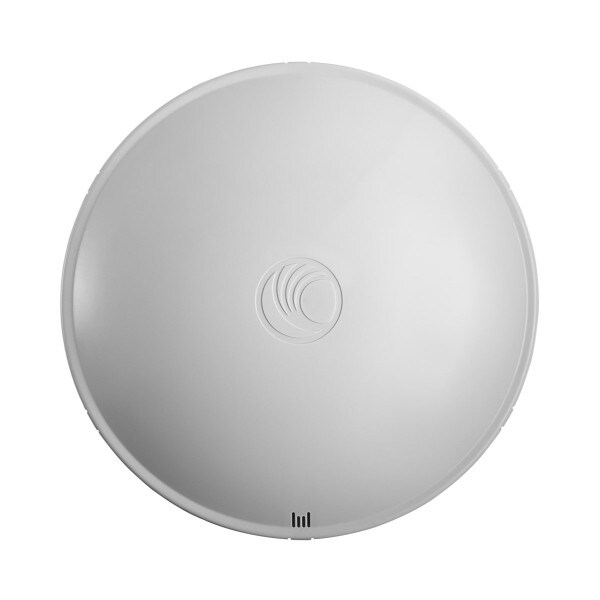

ePMP Force 200 Radome

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 GHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.

  • Provides Additional Protection to the Dish Antenna
  • Attaches Easily to the Dish
  • Applications: Snow, Rain, Ice, Wind, Blowing Sand and Debris

Specifications N000900L021A

INTERFACE
MAC (Media Access Control) LayerCambium Proprietary
Physical Layer2x2 MIMO/OFDM
Ethernet Interfaced10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols UsedIPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
Network ManagementHTTPs, SNMPv2c, SSH
VLAN802.1Q with 802.1p priority
PERFORMANCE
ARQYes
Nominal Receive Sensitivity (w/FEC) @200MHz ChannelMCS0 = -92 dBm to MCS15 = -68 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz ChannelMCS0 = -89 dBm to MCS15 = -65 dBm (per branch)
Modulation Levels (Adaptive)MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of ServiceThree level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority
Transmit Power Range-15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
PHYSICAL
Surge Suppression1 Joule Integrated
EnvironmentalIP55
Temperature-30°C to +60°C (-22°F to +140°F) – with radome attached maximum temperature is +47°C (+116°F)
Weight2.4 GHz Model: 2.8 kg (6.2 lbs) 5 GHz Model: 2.3 kg (5.1 lbs)
Wind Survival145 km/hour (90 mi/hour)
Dimensions (Dia x Depth)47 cm x 28 cm (18.5 in x 11.2 in)
Pole Diameter Range6.4 cm - 7.6 cm (2.5 in - 3 in)
Power Consumption10 W Maximum, 5 W Typical
Input Voltage10 to 30 V
Encryption128-bit AES (CCMP mode)
