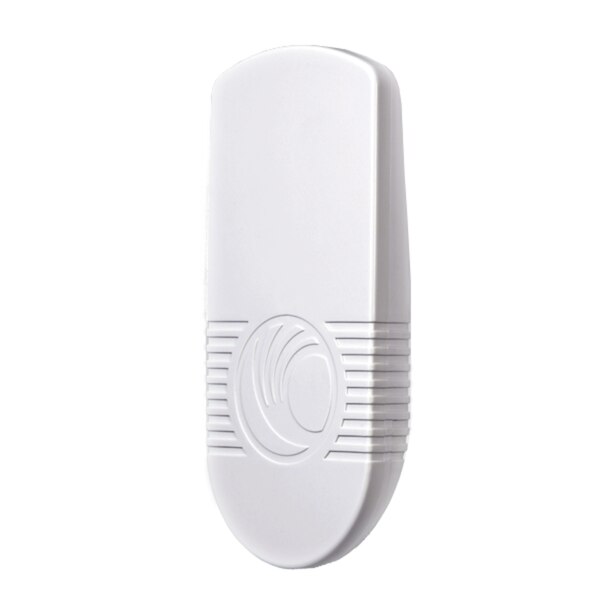

ePMP 1000: 2.4 GHz Integrated Radio (US cord)
ePMP 1000 2.4GHz Integrated Radio
Network operators are challenged to deliver reliable connectivity in overcrowded RF environments. As available spectrum becomes more congested, having the right broadband access solution that allows network operators to deliver efficient quality cost effectively, is vital for all types of deployments.
Maximize network performance using ePMP software with eFortify™ and eCommand™ features and tools. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning and monitoring of their network. The ePMP 1000 Integrated Radio is a compact and powerful platform that can operate as an Access Point, Subscriber Module or PTP radio. When configured to operate as a Subscriber Module or PTP Radio, its gain can be enhanced by the ePMP 1000 Reflector Dish.
Available in both 5 GHz and 2.4 GHz frequency bands the platform delivers high performance and reliable broadband connectivity to customers, with services such as VoIP, video and data. The ePMP 1000 is the most effective connectivity solution for reaching the under-and unconnected around the world.
Specifications C024900C031A
| Channel spacing | Configurable on 5 MHz increments |
| Frequency range | 2.4 GHz: 2402 – 2472 MHz |
| Channel width | 20 MHz or 40 MHz |
| MAC (media access control) layer | Cambium Proprietary |
| Physical layer | 2x2 MIMO/OFDM |
| Ethernet interface | 100 BaseT, Cambium PoE (V+ = pins 7 & 8, Return = pins 4 & 5) |
| Protocols used | IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, FTP |
| Network management | HTTPs, FTP, SNMPv2c |
| VLAN | 802.1Q with 802.1p priority |
| ARQ | Yes |
| Nominal receive sensitivity (W/ FEC) @ 20MHZ Channel | MCS1 = -90 dBm to MCS15 = -62 dBm (per branch) |
| Nominal receive sensitivity (w/ FEC) @ 40MHZ Channel | MCS1 = -87 dBm to MCS15 = -59 dBm (per branch) |
| Modulations levels (ADAPTIVE) | MCS1 (QPSK 1/2) to MCS15 (64QAM 5/6) |
| Latency | 6 ms (Flexible Frame Mode) , 17 ms (GPS Sync Mode) |
| Quality of service | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority |
| Transmit power range | -17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Antenna gain | 2.4 GHz: integrated |
| Maximum transit power | 2.4 : 30 dBm combined (subject to regional regulatory restrictions) |
| Antenna connection | Integrated antenna |
| Surge suppression | 1 Joule Integrated |
| Environmental | IP55 |
| Temperature | -30°C to +60°C (-22°F to +140°F) |
| Weight | 0.49 kg (1.1 lb.) |
| Wind survival | 145 km/hour (90 mi/hour) with antenna |
| Dimensions (h x w x d) | 29.1 x 14.5 x 8.3 cm (11.4 x 5.7 x 3.3 in) |
| Power consumption | 7 W Maximum, 5 W Typical |
| Input voltage | 10 to 30 V |
| Encryption | 128-bit AES (CCMP mode) |
| FCCID | 2.4 GHz: Z8H89FT0011 |
| Industry Canada cert | 2.4 GHz: 109W-0011 |
