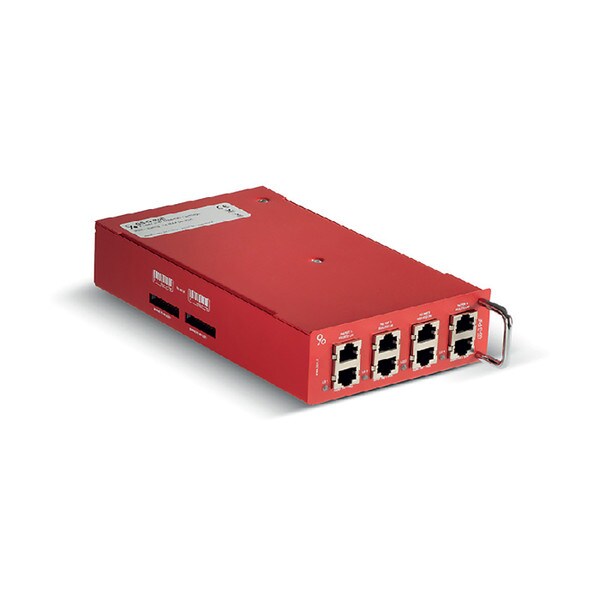

PoE Cartridge for GS-B-V2, 4x Ethernet Ports, 150W max per port. For the configuration of each port a GigaKey hardware key is needed. Cambium Sync, Canopy Sync Compatible

GigaSync PoE Cartridge / CS

GigaSync is designed to power every kind of devices by Power over Ethernet standard or directly by bipolar terminal blocks.

The Base Unit can handle up to 3 different Cartridges, up to 12 outputs ports.

Power Source can be different in voltage and belongs to many power supplies.

CPU

- Fast software and firmware update internal storage of every parameter

- Dynamic Web Interface warning e critical event logging

- Internet connection through integrated Wi-Fi

FEATURES

- 2 input terminal blocks for each cartridge

- input voltage presence led indicator for each input terminal block

- Cambium uGPS power out on Sync In port

- USB console port

DESIGN

- SW/FW updates without service interruption

- Hot Swap

- zero input to output voltage drop and self consumption reduction

- input voltage detection and accurate measurement

INTERFACE

- the web interface shows voltage, temperature and load instant value and graphs

- through the command line interface you can read status and send commands to the GigaSync

- Flexible management system integration
