cnPilot E400 Indoor(FCC) 802.11ac dual band AP only
E400-US Indoor FCC 802.11ac dual AP Only (US Version)

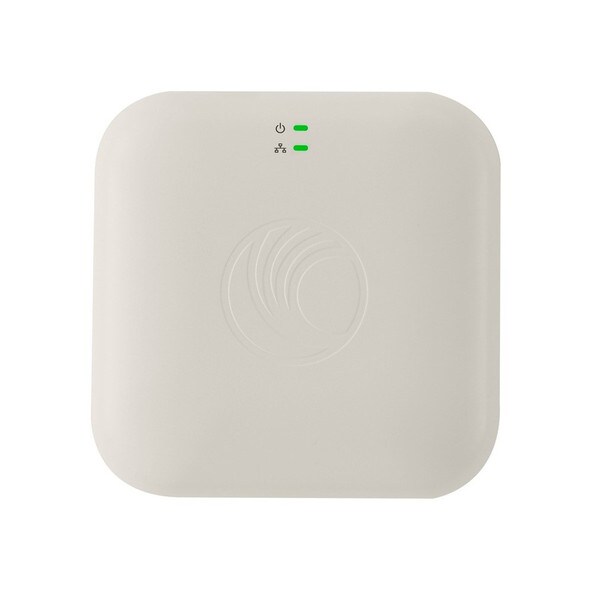

cnPilot™ E400 Indoor Access Point
Designed for wireless service providers of both enterprise and distributed enterprise networks, cnPilot™E400 offers WLAN that is scalable, secure, and reliable. The enterprise-grade 802.11ac access points support on-premise or cloud management in a solution that rolls out quickly, blends in to the environment and is easy to operate.
Features:
- 802.11AC Concurrent Dual Band
- 2x2 MIMO
- 16 SSIDs supporting 256 concurrent users
- Cloud managed with no on-site controller equipment
- On-board Captive Portal
- Rate limiting per SSID and client
- Fast roaming across access points
- Auto Channel Selection for Allocation of the wireless spectrum
Specifications PL-E400X00A-US
Type | Dual band 2.4 & 5 GHz 802.11ac Indoor APs |
Stream | 2x2 MIMO |
Range | 180 m (600 Ft) |
Concurrent Clients | 256 |
Max Throughput | +1.167 Gpbs |
SSID | 16 |
Antenna | Integrated Omni |
Antenna Gain | 5 dBi |
Polarization | Dual Polarized |
Antenna coverage | Omni (360°) |
Ethernet Ports | One (1) x 1 Gigabit Ethernet (GigE) |
Physical lock | Kensington key hole |
Power Supply | 802.3af injector or Powered Ethernet switch |
Power Consumed | 13W (max) |
Dimensions (cm) | 18 cm x 18 cm x 3 cm |
Weight | 350g |
Temperature | 0°C to +50°C |
Certification | FCC, CE |
Tx Power | 25 dBm |
