SKU: RTRDC-0400-PF-48
$1,553.33 $1,664.29
(0)No Reviews yet
Back

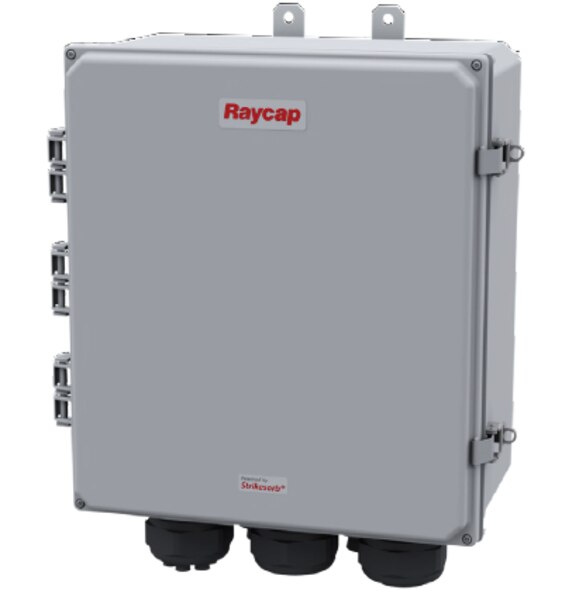

Tower/Base DC OVP for up to 4 RRH in an individual protection architecture. 12 pair LC/LC fiber bulkhead and cable management. Will accept Hybrid or Discrete cabling solutions. Provides IEC Class 1 protection with Impulse Discharge Current of 12.5kA (10/350). VPL of Strikesorb is less than 200V, MOV Voltage Limiting Elements providing uninterruptible protection in a NEMA 4X enclosure.
Back

Employs the Strikesorb® 30-V1-2CEV Surge Protective Device (SPD) specifically designed for the Remote Radio Head (RRH) installation environment and certified for use in DC applications and at low DC operating voltages (48V)

The Strikesorb 30-V1-2CEV is a Class I SPD, certified by VDE per the IEC 61643- 11 standard as suitable for installation in areas where direct lightning exposure is expected. Strikesorb 30-V1-2CEV can withstand direct lightning currents up to 12.5kA (10/350) and induced surge currents of up to 60kA (8/20).

Provides very low let through / clamping voltage - unique for a Class I product - as it does not employ spark gaps or other switching elements. Strikesorb offers unique protection levels to the RRH equipment as well as the Base Band Units

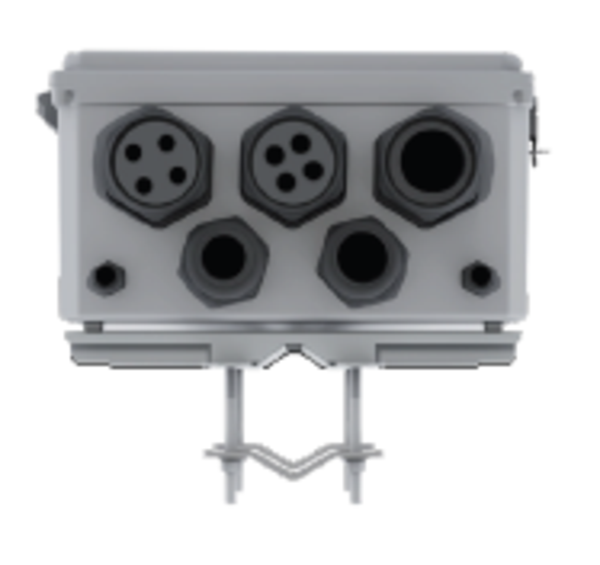

Configurable cable ports are designed to accommodate varying diameters of hybrid (combined power and fiber optic) or standard cables

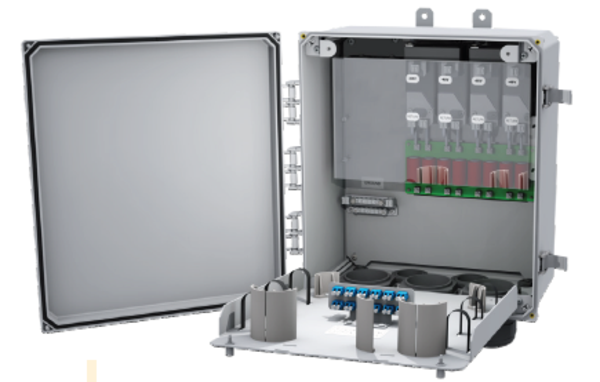

Custom-labeled fiber patch panel for up to 12 fiber pair

Fully recognized to the UL 1449 5th Edition Safety Standard
