RTRDC-0100-P-48| CTIconnect, LLC

SKU: RTRDC-0100-P-48
$466.67 $500.00
(0)No Reviews yet
Back

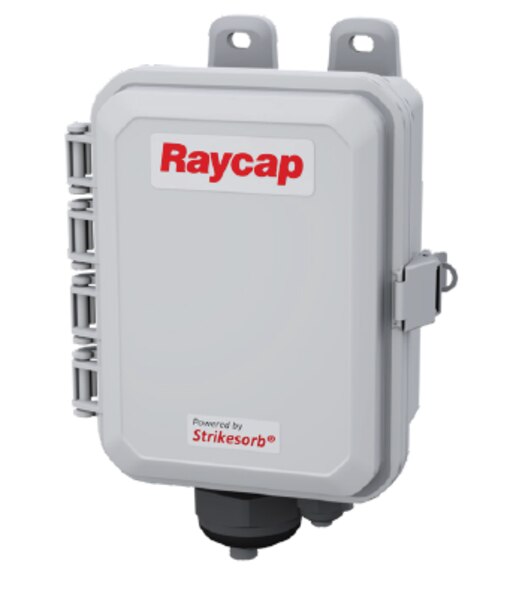

Tower/Base DC OVP for 1 RRH in an individual protection architecture. Provides IEC Class 1 protection with Impulse Discharge Current of 12.5kA (10/350). VPL of Strikesorb is less than 200V, MOV Voltage Limiting Elements providing uninterruptible protection in a NEMA 4 enclosure.
Back

Employs the Strikesorb® 30-V1-2CEV Surge Protective Device (SPD) specifically designed for the Remote Radio Head (RRH) installation environment and certified for use in DC applications and at low DC operating voltages (48V)

The Strikesorb 30-V1-2CEV is a Class I SPD, certified by VDE per the IEC 61643- 11 standard as suitable for installation in areas where direct lightning exposure is expected. Strikesorb 30-V1-2CEV can withstand direct lightning currents up to 12.5kA (10/350) and induced surge currents of up to 60kA (8/20).

Provides very low let through / clamping voltage - unique for a Class I product - as it does not employ spark gaps or other switching elements. Strikesorb offers unique protection levels to the RRH equipment as well as the Base Band Units

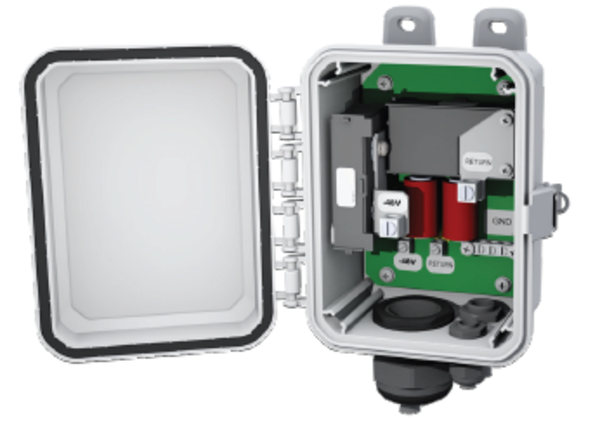

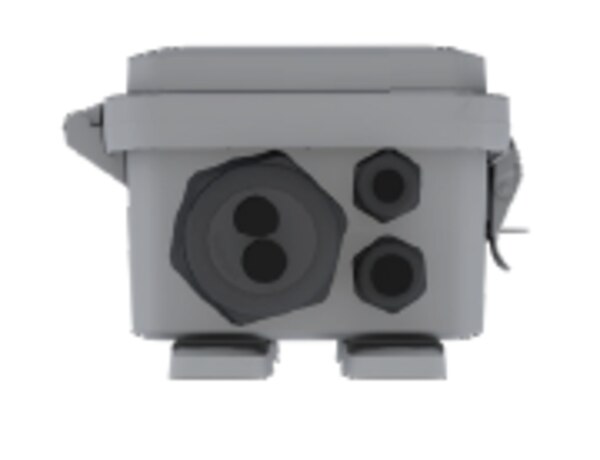

Configurable cable ports are designed to accommodate varying diameter conductors

Over Voltage Protection is fully recognized to the UL 1449 5th Edition Safety Standard

Patent pending design
