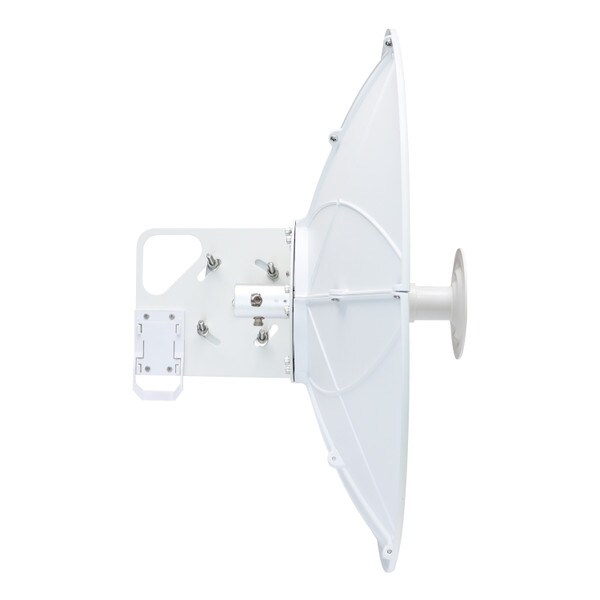

4950 MHz to 7125 MHz, 2-foot collapsible Parabolic Antenna
The KP Performance KP-6PDCN-2-NF collapsible parabolic antenna is for point to point communications that uses a parabolic reflec- tor to direct the waves to the receiver in its focal point. It has a frequency range of 4950 to 7125 MHz, providing stability over a wide bandwidth to support gigabit transmissions and has operating temperature ranging from -40°C to 70°C (-32°F to 158°F). This antenna has a 30 dBi high gain, which describes electrical power conversion capability.
2-Foot collapsible parabolic antenna
4950 to 7125 MHz, 30 dBi
VSWR < 2.5:1
All aluminum dish
Dual slant (V/H or ±45°)
50 W max input power per port
2 x N-Type female connectors
DC ground
