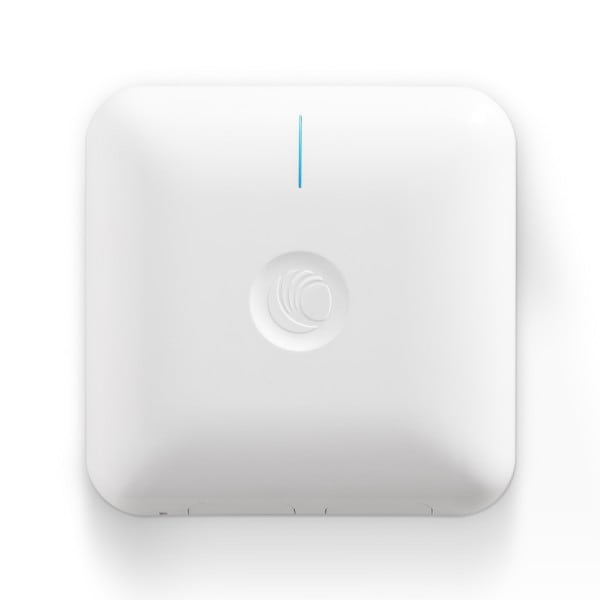

cnPilot E600 Indoor (FCC, US cord) 802.11ac Wave 2, 4x4, AP
CnPilot E600 Indoor (FCC, US cord) 802.11ac Wave 2, 4x4, AP with PoE Injector
Stay on top of the latest standards with the high-powered, Gigabit speed, beamforming, Multi-user MIMO (MU-MIMO) 802.11ac wave 2 E600 access point with a 4x4 antenna array. From the classroom to the mall, cnPilot ™ E600 Indoor is perfect for applications that demand high capacity, range, and/or support high user density.
The E600 supports seamless roaming for up to 1,000 clients without needing a controller in the network. Hotspot portal hosting on the AP itself offers controller-less simplicity.
Indoor meshing across multiple E600s, or Indoor/Outdoor meshing across both the Indoor E600 and the Outdoor E500, offers convenient options to wirelessly expand Wi-Fi coverage.
The plenum-rated E600, packs a max transmit power of 28 dB, and is DFS certified to make use of additional reserved 5 GHz DFS channels – offering more flexibility than ever for both coverage and capacity. Throughput management via airtime fairness, increased performance by Automatic Channel Scanning (ACS), and higher client device speeds from band steering ensure your network can adapt to dynamic client behaviors.
Specifications PL-E600PUSA-US
| Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| MiMO Streams | 2x2 (2.4GHz), 4x4 (5GHz) |
| Range | 250m (800ft) |
| Concurrent Clients | 512 |
| Max Data Rates | 1.3Gbps |
| SSID | 32 SSIDs across 2 radios |
| Antenna Gain | 4.55dBi (2.4GHz) / 4.25dBi (5GHz) |
| Multi-Hop Mesh | Yes, supported on Indoor and Outdoor access points. Mesh auto-recovery supported |
| Polarization | Dual-linear |
| Antenna Coverage | Omni (360°) |
| USB | Yes |
| Bluetooth Radio | Yes, BLE |
| Ethernet Ports | (1) 2 Gigabit Ethernet |
| Frequency Bands | 2.4GHz: 2400 - 2484MHz 5GHz: 5150 - 5850MHz with DFS band support |
| Power Supply | Standard 802.3af injector (included), 802.3at PSE, 802.3af PSE (limited performance), 12VDC adapter (accessory) or PoE switch |
| Power Consumed | 22W (max) |
| Dimensions | 180 x 180 x 42mm |
| Weight | 400g |
| Temperature | 0 to 50°C |
| LED | Single LED window with tri-color (Amber, Blue, Green) display |
| Max Tx Power | 22dBm |
| Physical Lock | Kensington key hole |
