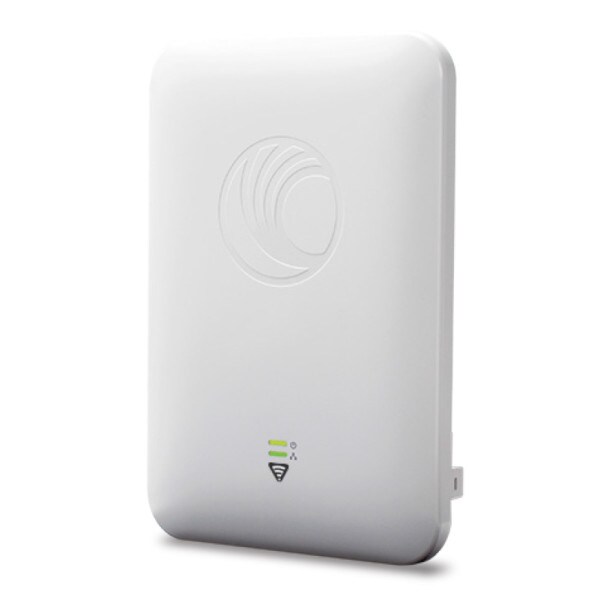

E501S (FCC) Outdoor 2x2 Integrated Gigabit 11ac access poin

(0) No Reviews yet
$573.85
SKU: PL-501S000A-US
Manufacturer: Cambium Networks

This item is IN STOCK

Available: 22

Cambium E501S-US Outdoor 11ac 2x2 AP Only

E501S (FCC) Outdoor 2x2 Integrated Gigabit 11ac access point with tilt brackets. AP only

Perfect for demanding, high density applications and longer range coverage across large areas, including: industrial or education campuses, enterprise and hospitality complexes, public parks and recreational areas, or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN access points.

Operational superiority - The E501S with integrated sector antenna supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more. The 802.11ac E501S is the essential workhorse for today's demanding, high density outdoor Wi-Fi networks.

High performance Wi-Fi network - All cnPilot's Enterprise access points (APs) support features like controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, and more - essential features for easy Wi-Fi operations.

Mesh - Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for client access simultaneously.

Wireless Backhaul Integration - the aux PoE port on the E501S offers PoE out, eliminating the need for a second power line - perfect for powering on a standard 802.3af camera, or on Cambium's PMP 450 or ePMP backhaul subscriber modules (SMs) for wireless backhaul enabled Wi-Fi hotspots.

Resilience - Dual on-board Active/Standby memory banks ensure higher availability. The E501S can store two versions of the software - defaulting to a working operational software if needed - reducing the likelihood of site visits and increasing network up-time.

Designed For The Outdoors:

  • 802.11ac, 256 users, 16 SSIDs
  • 90°~120° coverage
  • 23 dBm front-back ratio
  • UV rated IP-67 enclosure
  • Operating Temp: -30°C ~ +60°C
  • Electrical heater for cold start
  • Ruggedized - ESD protection, industrial- grade components
  • Packaged with wall mount brackets
  • Special LTE coexistence filters
  • Light weight ~ 1Kg

Specifications PL-501S000A-US

Frequency Bands2.4 GHz: 2.4 – 2.484 GHz
 Channels 1 – 13 (ETSI/CE),
 Channels 1 – 11 (US)
5 GHz: 5.15 – 5.85 GHz
SSID SecurityWPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open
Max SSID16
Max Concurrent Clients256
Max RangeClient: 213 m (700 Ft); Actual range will vary based on local RF conditions & client capability.
Mesh: 2.4 GHz: 3,000 m (9840 Ft.) 5 GHz: 1,500 m (4,900 Ft.)
Max Data Rates1.01 Gbps
Ethernet PortsDual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
AntennaDual polarized. 2x2 MIMO. Integrated Sector antenna
Antenna Gains10.5 dBi on 2.4GHz
13 dBi on 5GHz
Power Supply56V/30W Gigabit passive PoE injector
PoE OutAux port: capable of 802.3af Power out or Canopy power (for supported Cambium ePMP or PMP450 SMs)
Transmit Power29dBm @ 2.4GHz
28dBm @ 5 GHz
Power ConsumedTypical: 8W Max: 12.95W (no auxiliary device connected)
Dimensions (CM)30 x 20.4 x 6.5 cm (without bracket)
WeightWithout bracket: 881 g (0.88 Kg); with Bracket: 1,063 g (1.06 Kg)
Operating Temperature-30°C ~ +60°C
Mounting OptionsPole mount bracket (included) or wall-mount (with included bracket or without)
LTE Co-ExistenceSpecial filter for rejecting interference on 2.4 GHz from adjacent LTE bands 38, 40
Physical SecurityKensington Lock bracket
Visaul StatusTwo (2) multi-color LEDs indicating Access Point & cnMaestro connectivity status
