• Home
  • 5GHz Force 300-19R SM (FCC) (US cord)

5GHz Force 300-19R SM (FCC) (US cord)

(0) No Reviews yet
$261.23
SKU: C058900C901A
Manufacturer: Cambium Networks

This item is IN STOCK

Available: 55

Cambium Networks C058900C901A

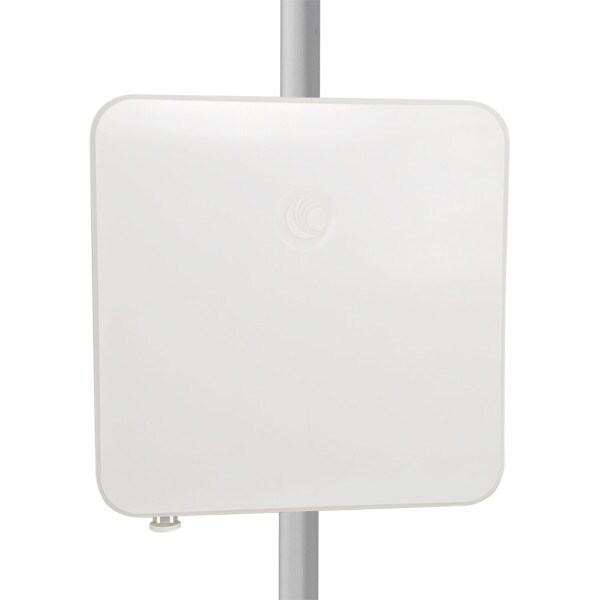

ePMP 5GHz Force 300-19R SM (FCC) (US cord)

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density deployments. Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802.llac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-19R delivers up to 600 Mbps of capacity. The Force 300-19R is a powerful yet affordable subscriber module compatible with the ePMP 3000 Access Point and using the forward compatibility features also interoperates with the ePMP 2000 to ease the migration into the 802.llac Wave 2 technology.

The Force 300-19R has a 19 dbi integrated antenna with a narrow beamwidth and reliable IP67 mechanics.


Features:

  • Cambium Networks' ePMP Force 300-19R is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data.
  • The Force 300-19R also supports narrow 5 and 10 MHz channels especially useful in 4 .9 GHz licensed bands and other areas where smaller channels are needed.
  • The ePMP Force 300-19R supports real time spectrum monitoring without degradation in throughput.
  • Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
  • QoS management offers outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority.
  • The integrated 19 dBi panel antenna has a small form factor and provides excellent range. Refer to Cambium Networks LINKPlanner[tm] for estimating capacity and availability.
  • Installations are quick and reliable with the IP67 ruggedized housing and easy to install mount, capable of pole and wall mounting

Specifications C058900C901A

SPECTRUM
Channel SpacingConfigurable in 5 MHz increments
Frequency RangeWide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.)
Channel Width5 / 10 / 20 / 40 / 80
INTERFACE
MAC (Media Access Control) LayerCambium
Proprietary Physical Layer802.11ac Wave 2 (2x2 MIMO/OFDM)
Ethernet Interfaced10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols UsedIPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network ManagementIPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN802.1Q with 802.1p priority
PERFORMANCE
ARQYes
Nominal Receive Sensitivity (w/FEC) @20 MHz ChannelMCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -68 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @40 MHz ChannelMCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -66 dBm (per chain)
Nominal Receive Sensitivity (w/FEC) @80 MHz ChannelMCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -61 dBm (per chain)
Modulation Levels (Adaptive)MCS0(BPSK) to MCS9 (256 QAM-5/6)
Transmit Power Range0 to +28 dBm (combined up to the regioanl EIRP limit) (1 dB interval)
PHYSICAL
Surge Suppression1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection)
EnvironmentalIP67
Temperature-30°C to +60°C (-22°F to +140°F)
Weight1.45 kg (3.2 lbs.) (includes mounting bracket)
Wind Survival180 km/hour (112 mi/hour)
Dimensions (Dia x Depth)27.8 x 27.8 x 4.5 cm (10.9 x 10.9 x 1.8 in) without mounting bracket
Pole Diameter Range1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption12 Watts
Input VoltagePassive POE (30 VDC Nominal); 14-30 VDC range
SECURITY
Encryption128-bit AES (CCMP mode)
CERTIFICATIONS
FCCIDZ8H89FT0048
Industry Canada Cert109W-0048
CEEN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)**
