3 GHz PMP 450m Integrated Access Point, 90 Degree, Limited

SKU: C030045A111B
Manufacturer: Cambium Networks
Data Sheet:
(0)No Reviews yet

Call for availability

Cambium Networks C030045A111B

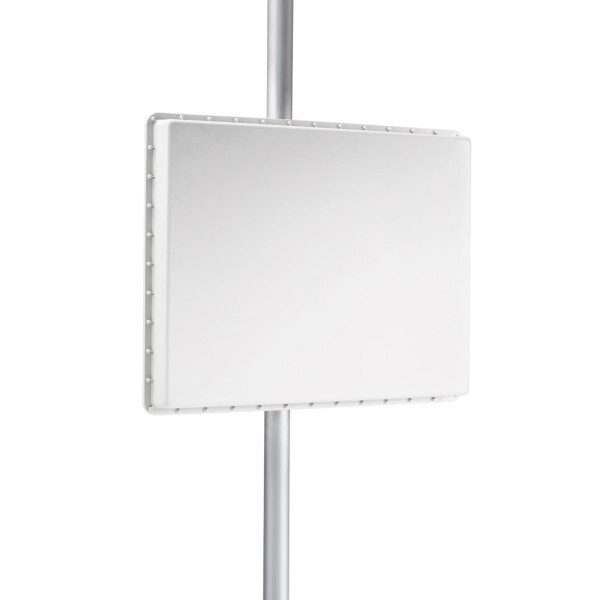

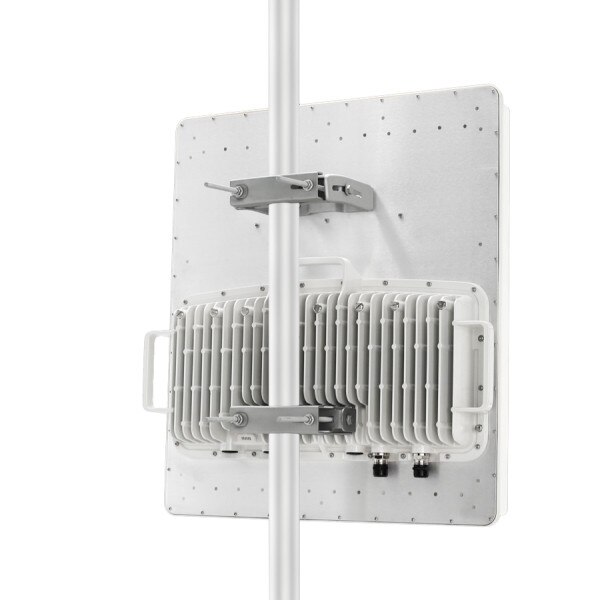

Cambium cnMedusa 3GHz PMP 450m Integrated Access Point, 90 Degree Antenna (Limited)

Cambium Networks industry-leading 450 platform adds Massive Multi-User MIMO capability with cnMedusaTM technology, now available at 3 GHz.


  • cnMedusaTM technology enhances sector capacity by combining a smart beamforming antenna array with multiple RF transmit and receive chains, effectively multiplying available capacity by more than three times.
  • Capable of throughput of 450 Mbps in a 20 MHz channel, and over 800 Mbps per sector when using a 40 MHz channel.
  • Multi-User MIMO uses available spectrum more efficiently by making simultaneous transmissions to multiple subscribers, increasing spectral efficiency to more than 50 bps/Hz per site.
  • Protects your investment in the 450 platform equipment by continuing to utilize existing Subscriber Modules (450 and 450i platform subscribers work with the 450m and cnMedusa technology)
  • Dramatically reduce the effect of interference in both Uplink and Downlink with smart beamforming
  • SFP port allows for greater deployment flexibility, and AUX port allows for connection of camera or other PoE directly.
  • The Limited Version can reduce capital investment until additional capacity is actually required. A 30-day trial of MU-MIMO operation is included, and a simple license key can permanently enable MU-MIMO operation when needed.

Specifications C030045A111B

Frequency Range3300-3900
Physical Antenna8x8 Multi-User MIMO
Interfaces100/1000BaseT, full duplex, rate auto negotiated (802.3 compliant), SFP Support for 1 Gbps optical
PoE In40-60 V DC
Channel Width5,7,10,15,20,30 and 40 MHz
Max Power consumption140 W typical, 150 W peak (up to 180 W max with AUX port PoE enabled)
Wind Loading124 mph / 200 kph
Dimensions610 x 691 x 91 cm
IP RatingIP67, IP66
